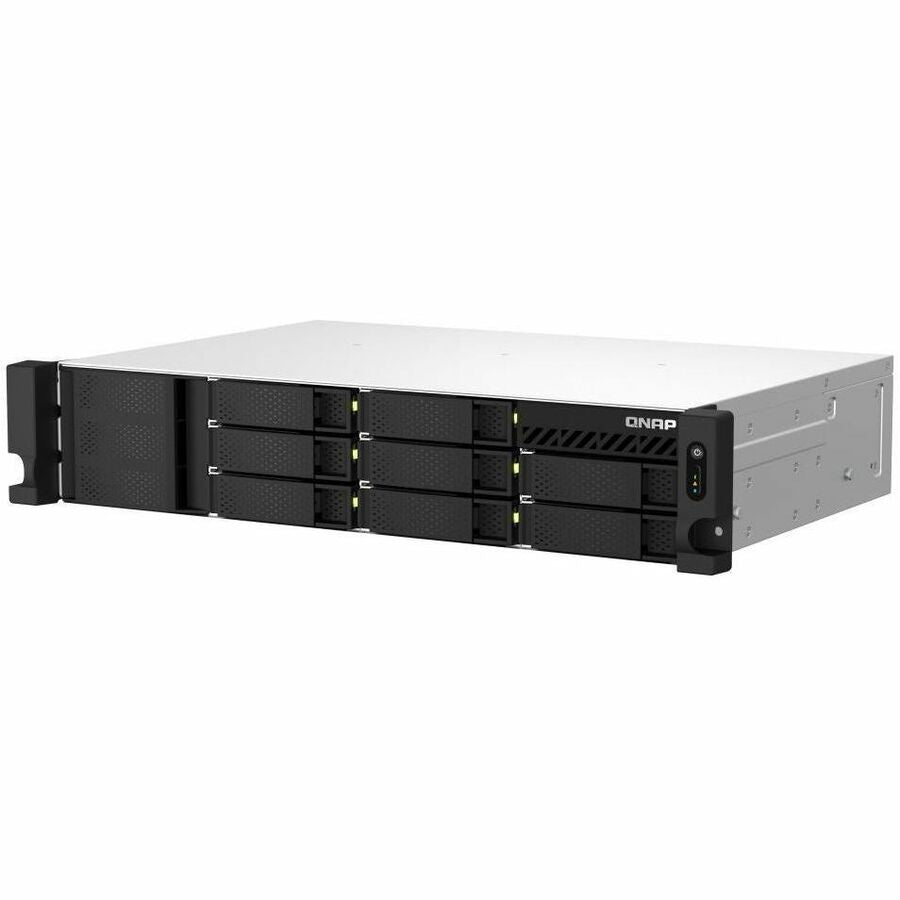

QNAP TS-864EU-8G 8 x Total Bays SAN/NAS Storage System - 4 GB Flash Memory Capacity - Intel Celeron N5095 Quad-core (4 Core) - 8 GB RAM - DDR4 SDRAM - 2U Rack-mountable

QNAP TS-864EU-8G 8 x Total Bays SAN/NAS Storage System - 4 GB Flash Memory Capacity - Intel Celeron N5095 Quad-core (4 Core) - 8 GB RAM - DDR4 SDRAM - 2U Rack-mountable

The TS-864eU is powered by Intel® Celeron® N5095 quad-core processor (burst up to 2.9 GHz). The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. With expandable storage capacity and feature-rich apps, the TS-864eU surpasses the previous generation.

2.5GbE connectivity

Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE ports.

HDMI Output

Supports 4K media playback and real-time transcoding.

PCIe expandability

One PCIe slots allow for installing 2.5/5/10GbE adapters, QM2 cards, or USB 3.2 Gen 2 (10Gbps) expansion cards.

USB interface

Two USB 3.2 Gen 2 10Gbps ports for faster data transfer.

Backup and data recovery

Protects PC/Macs, virtual machines, software containers, cloud data, and SaaS services.

Hybrid cloud applications

Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS.

Quad-core Processor, burst up to 2.9 GHz with Memory Upgradable to 8 GB

The TS-864eU is powered by Intel® Celeron® N5095 quad-core processor (burst up to 2.9 GHz) with 4 GB DDR4 memory which is upgradable up to 16 GB. With Intel® AES-NI encryption engine, the TS-x64eU provides unmatched encryption performance with AES-256 bit encryption acceleration, boosting system performance while ensuring the safety of sensitive business data stored in the NAS.

Build a High-Speed 2.5GbE Network Environment

QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

A fast 2.5GbE NAS

A QNAP NAS featuring one or more 2.5GbE ports, and Port Trunking allows you to combine multiple ports for greater bandwidth potential.

Upgrade computers and servers

Servers and desktops can install PCIe-based QNAP network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.

Add a 5GbE port to laptops

Laptops and upgrade-limited computers can use QNAP's portable USB 3.2 Gen 1 to 5GbE adapter that allows you to connect to 5G/2.5G/1G/100M networks via USB.

A switch that supports 2.5GbE+

QNAP's 10GbE/NBASE-T switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.

Future-proof your IT infrastructure for high-speed networks

The TS-864eU is ideally matched with QNAP's managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows®/Linux® workstations, allowing you to easily build a high-speed network environment for productive team collaboration.

Enhance productivity with multiple USB ports

With two USB 3.2 Gen 2 (10Gbps) ports and two USB 2.0 (480Mbps) ports, you can quickly backup and transfer large files to/from the TS-864eU. UPS, and other compatible USB devices can also be connected for greater functionality and application potential.

Abundant I/O capabilities with PCIe expansion

The TS-864eU has one PCIe Gen 3 x2 slot that allow for installing various expansion cards for expanding application potential.

• SAN/NAS Storage System offers maximum storage efficiency and convenience


• Holds up to 8 HDDs to let you expand limitlessly


• Through RAID levels (0, 1, 5, 6, 10, 50, 60, jbod), RAID provides data reliability, fault tolerance and improves overall performance


• DDR4 SDRAM memory technology for dependable data storage with maximum usability


• Through RAID levels (0, 1, 5, 6, 10, 50, 60, jbod), RAID provides data reliability, fault tolerance and improves overall performance


• Rack-mountable san/nas storage system allows a clutter-free, convenient usage with increased efficiency


• 2.5 Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information


• QTS 5.1.3 OS makes you more productive and creative

SAN/NAS Storage System offers maximum storage efficiency and convenience

Holds up to 8 HDDs to let you expand limitlessly

Through RAID levels (0, 1, 5, 6, 10, 50, 60, jbod), RAID provides data reliability, fault tolerance and improves overall performance

DDR4 SDRAM memory technology for dependable data storage with maximum usability

Through RAID levels (0, 1, 5, 6, 10, 50, 60, jbod), RAID provides data reliability, fault tolerance and improves overall performance

Rack-mountable san/nas storage system allows a clutter-free, convenient usage with increased efficiency

2.5 Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
